FLEX / FLEX WALKER

LANE MACHINE

One Lane Machine.
Endless Possibilities.

FLEX is Kegel's most sophisticated and technologically advanced lane machine, and its modern design makes a bold statement. The DUO conditioning system under the lid backs it up by combining Sanction Technology with dual conditioner tanks, making it the only lane machine to give you the benefit of easily using more than one lane conditioner in your center. Use one conditioner, two, or even mix-compatible conditioners - all in one pass!

What if you use Fire or Ice lane conditioner for your house pattern, but your bowlers want to practice on Current for an upcoming tournament?

What if you want to use a high-performance lane conditioner like Current for your competitive bowlers but would like to switch to a conditioner like Prodigy for open play?

With the FLEX, you can easily customize the bowling experience for your customers. Welcome to the FLEX Generation.

Kegel WalkiNg Lane Machines can give you up to $400 back each week from labor cost

LABOR SAVINGS CALCULATOR FOR WALKING LANE MACHINES

FEATURES

Special Features

Easy sliding detachable lid assembly

FLEX Conditioning System

DUO conditioning system
- Two conditioner pumps
- Two conditioner cartridges
DUO transfer system
- Enhances the smoothness of the pattern
- Residual oil burns out quickly for easy pattern changes
Two pre-filled or refillable conditioner cartridges allows for separate conditioner on forward and reverse pass
Ability to alternate two compatible lane conditioners in one pass
Per load adjustable microliter streams per for more control within each pattern

FLEX Cleaning System

Quick-change squeegee assembly allows you to easily change the blades in a fraction of the time
Change the cleaning solution output percentage from inside the oil pattern to the back-ends for each pattern or for all
Proven Sprayless Cleaning System
Easily monitor and adjust cleaner output as desired

FLEX Drive System

Dual Drive System for better tracking
Patented six drive speeds for best taper control
Independent adjustable cleaning speeds
LED arrow for better operator positioning

FLEX Touchscreen and PLC

Full color 7” touchscreen
Three program choices for both AM and PM
Stores 30 programs on board
Test input/output menu option

FLEX Batteries

Single lightweight battery
External battery charger
Two battery options based on number of lanes conditioned per day

FLEX WALKER Features

Zero Turn Radius lane-to-lane walking function
Auto-aligning lane whiskers
Smart processor auto-align memory option
Object detection
Automatic burn pair

TECHNICAL

SPECIFICATIONS

Packaging: One machine per crate
Flex Part Number:
- 17-5707 (115V AC/50-60 Hz)
  17-5757 (230V AC/50-60 Hz))

Flex Walker Part Number:
- 17-5803 (115V AC/50-60 Hz)
- 17-5853 (230V AC/50-60 Hz)
FLEX Machine Weight: 331 lbs. (150.1 kg)
FLEX Walker Machine Weight: 370 lbs. (167.8 kg)
Battery Specifications
- Each machine comes with our K2 Energy® lithium battery
- 158-1634B (62 lanes)
- 158-1634CU (90 lanes)

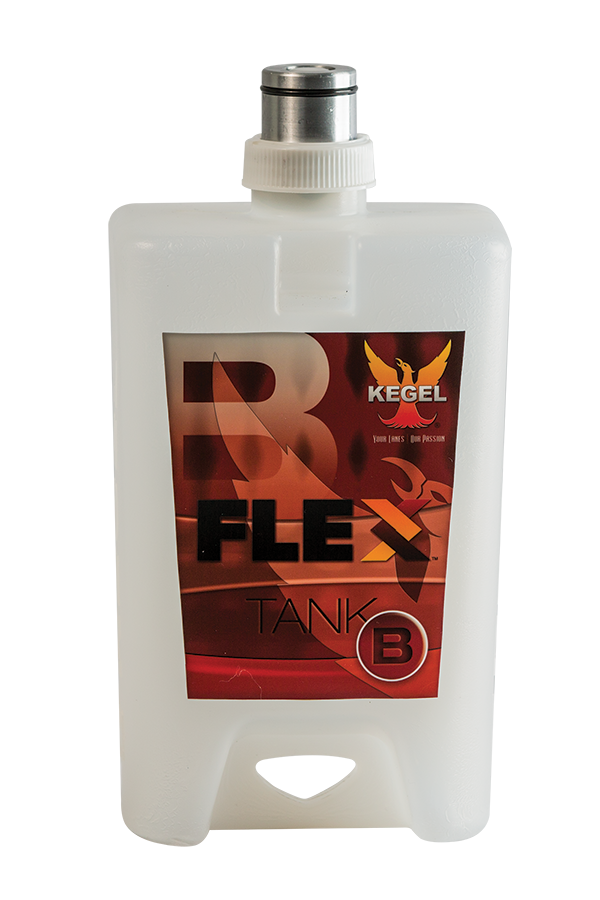

FLEX CONDITIONER CARTRIDGES

Easily insert our pre-filled conditioner cartridges with no spills and no mess, or use our refillable cartridges with your other favorite lane conditioners.

Wi-Fi Kit:

164-8821A: WI-FI CONNECTIVITY KIT FOR IKON & 2019+ MODEL FLEX

164-8821B: WI-Fi CONNECTIVITY KIT FOR 2013-2018 MODEL FLEX

FLEX UPGRADES

FLEX Cleaner Mixing System*

Simply select your ratio and let the FLEX mix your cleaner for you with precision and ease. Utilizing one cleaner tank and one water tank, the FLEX eliminates the need to measure out your cleaner.

FLEX Variable Buffer Speed

Select from a range of buffer motor speeds to customize your machine. Assign four presets for more control of your oil pattern's front-to-back taper or decrease your pattern run time by using high speed buff in key areas of your oil pattern.
