CROSSFIRE

WICK LANE MACHINE

AFFORDABLE QUALITY

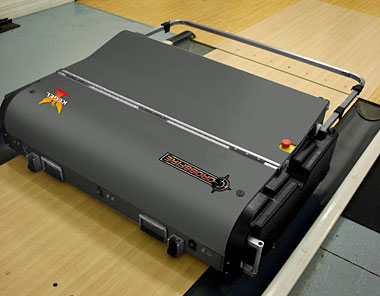

The Crossfire is a compact, durable, and highly functional lane machine at an extremely affordable price. This wick combination lane machine allows small centers to experience high quality lane maintenance only Kegel can deliver.

FEATURES

  • Cleans and conditions the lane in about 80 seconds

  • On-board keypad for simple machine programming

  • 6 High-Flow Wick Pads (upgradable)

  • 12 Lane Conditioner Capacity (upgradable)

  • 32 Lane Cleaner Capacity

  • 3 Drive Speeds for enhanced pattern taper

  • Compact Design

  • 3.5” Full Color Touchscreen Display

BENEFITS

  • Easy to Operate

  • Consistent Cleaning & Conditioning

  • Low Operating Cost

  • Reliable

TECHNICAL

SPECIFICATIONS

Part Number:

  • 17-5200D (115V/60 Hz) 6 Pad/Cam Machine

  • 17-5250D (230V/50 Hz) 6 Pad/Cam Machine

AC Machine Weight: 275 lbs | 124.7 Kg

UPGRADES

Complete Upgrade - Includes 8 Wicks with Cam
Rollers and Larger Conditioner Supply Tank
158-8241 (115V) | 158-8241E (230V)
Conditioner Tank Upgrade
158-8215 (115V) | 158-8215E (230V)
8 Pad Wick & Cam Kit - 158-8214
